DIRECT EXPANSION AIR HANDLING UNIT-Bộ phận xử lý không khí trực tiếp, môi chất R22, giải nhiệt gió

KZE (KZS/KZW) air cooled expansion air handling unit is a kind of unit combined with heat and cold source of its own. It contains air cooled condensing part and air handling unit part. It finishes cooling, heating, dehumidifying, silencing, eliminating sound, cleaning and supplying the air by using refrigeration system, control system, control system, and all kind air handling section. No need of cooling tower, cooling (chilling) water pipe, cycle water pump or machine room any more.

Mô tả
Specification:

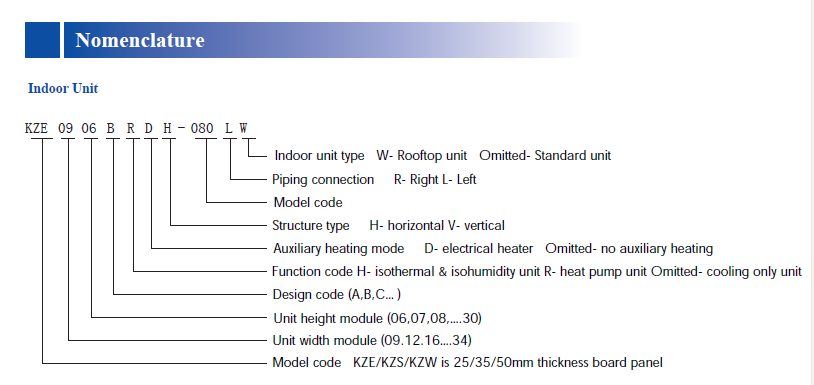

hình 1.png

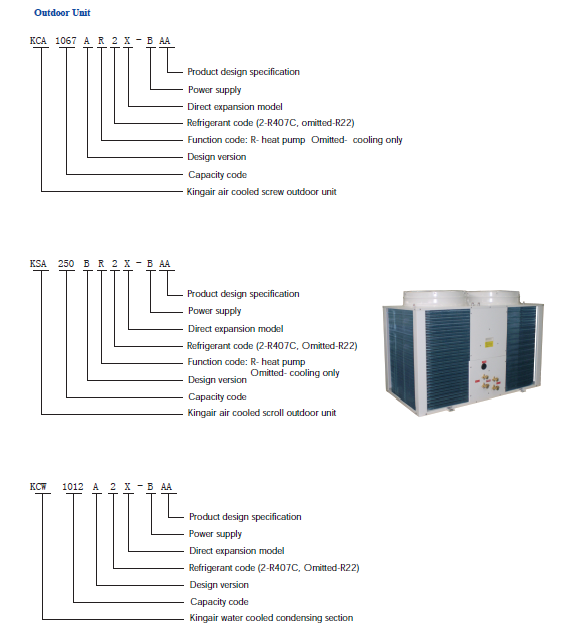

hình 2.png

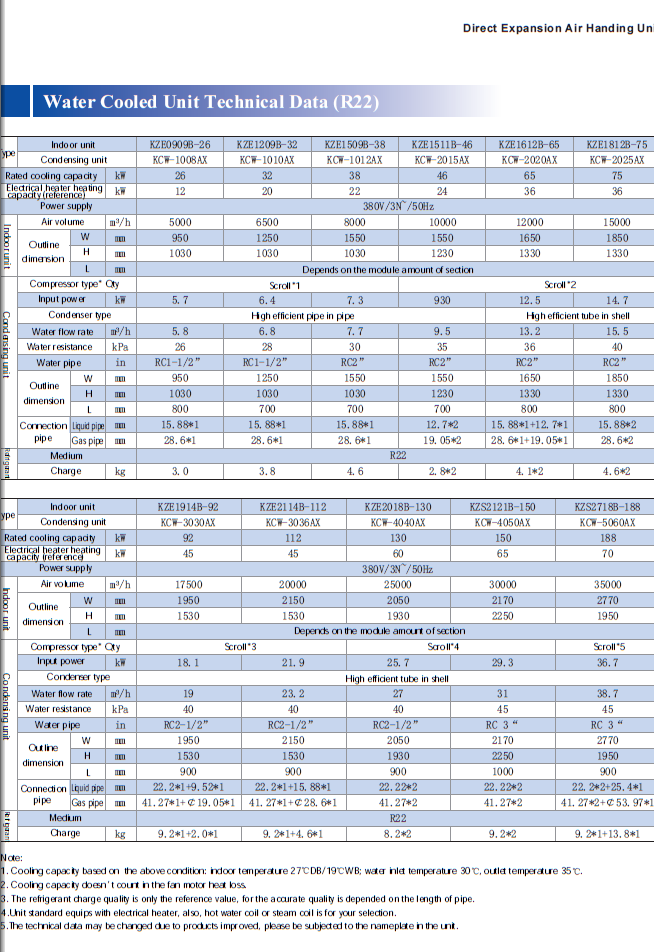

hình 3.png

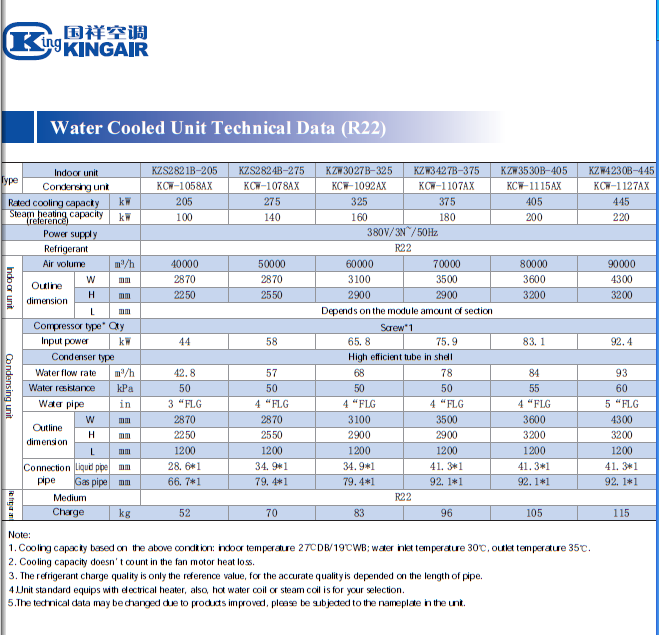

hình 4.png

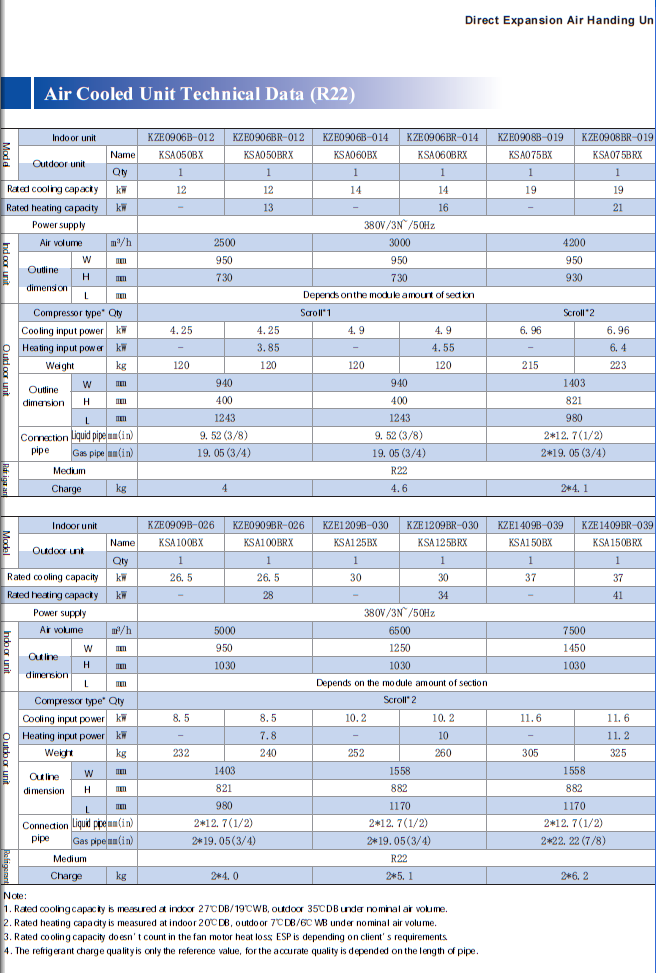

hình 5.png

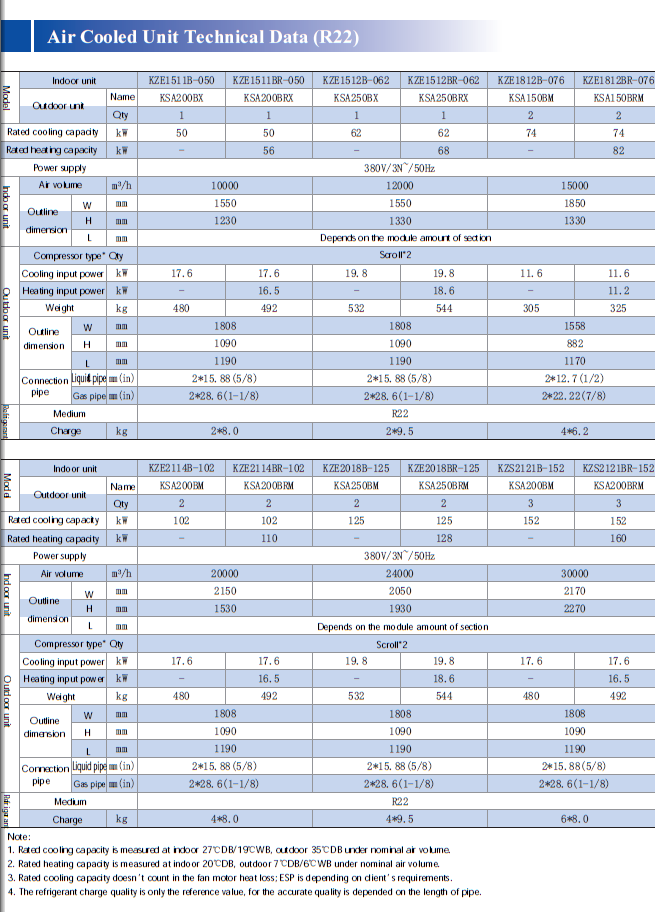

hình 6.png

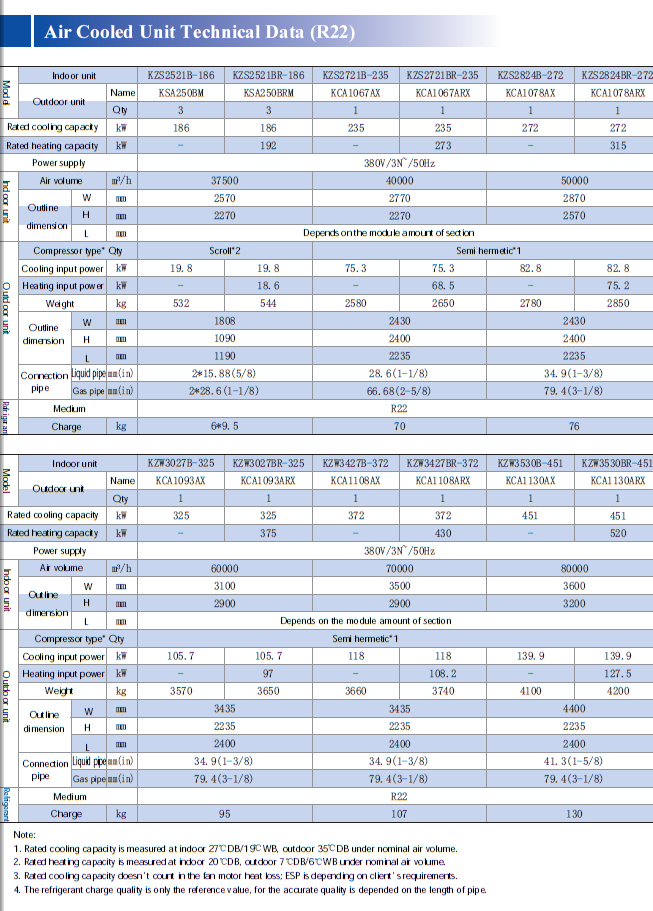

hình 7.png

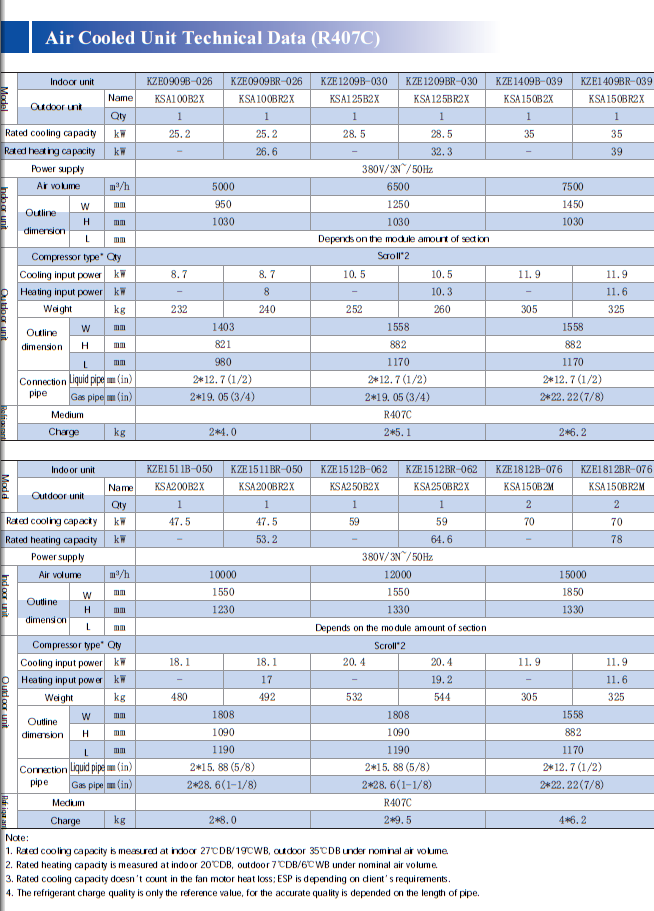

hình 8.png

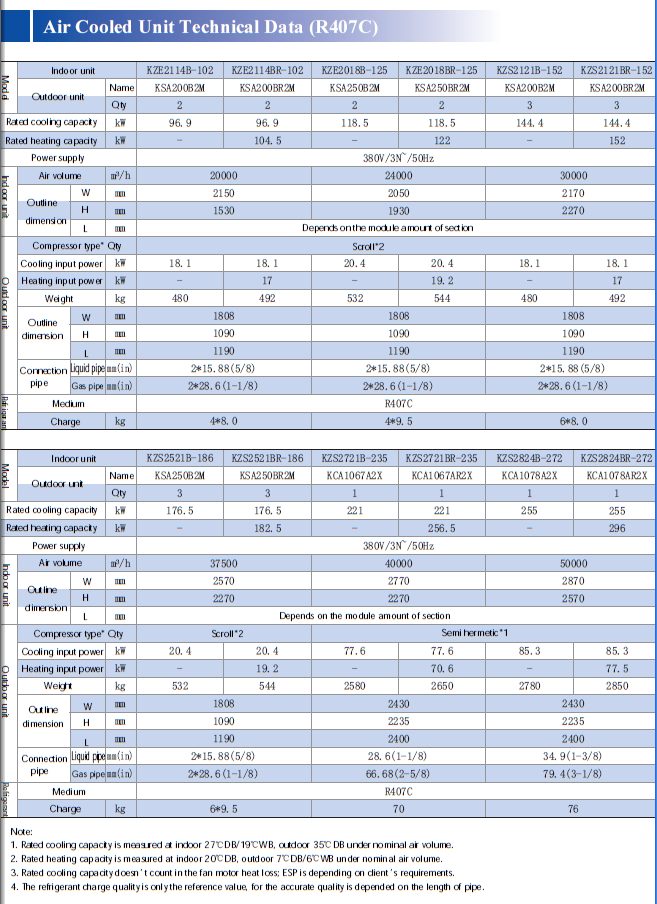

hình 9.png

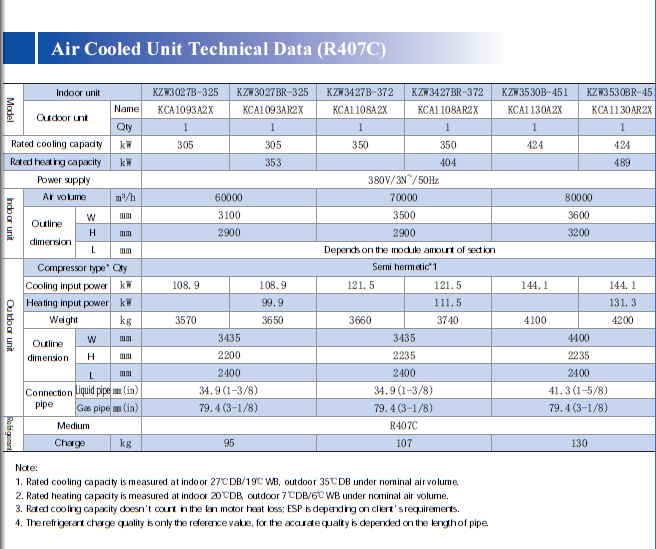

hình 91.png

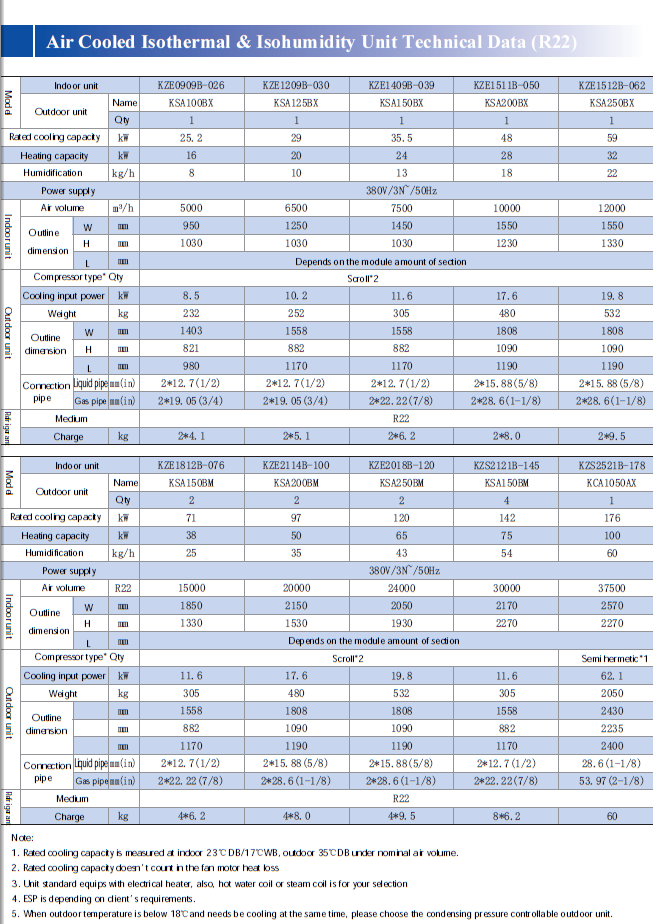

hình 92.png

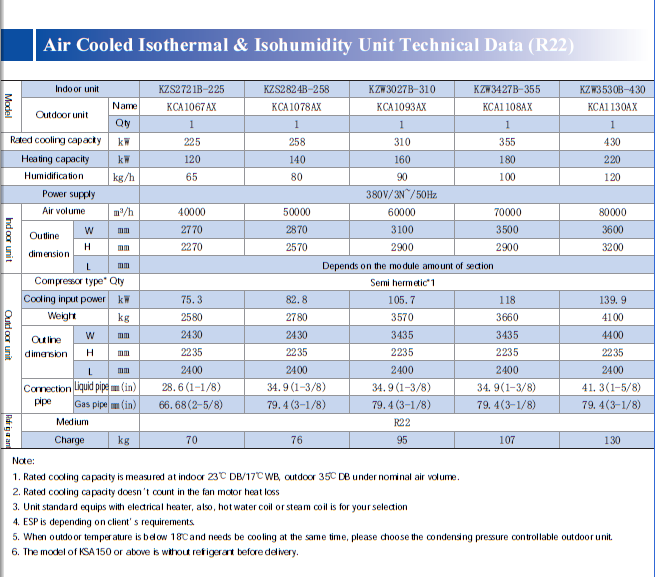

hình 93.png

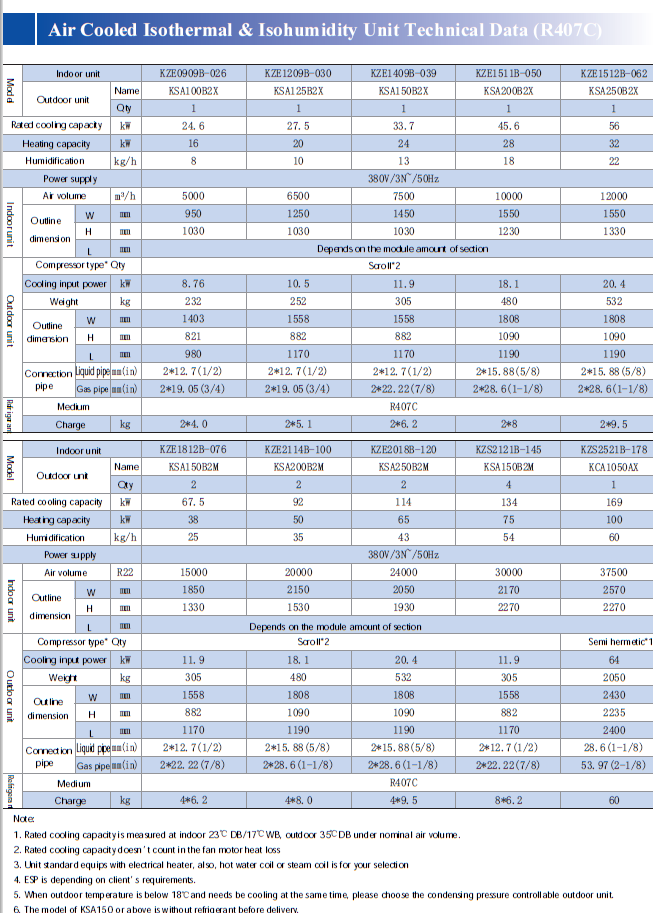

hình 94.png

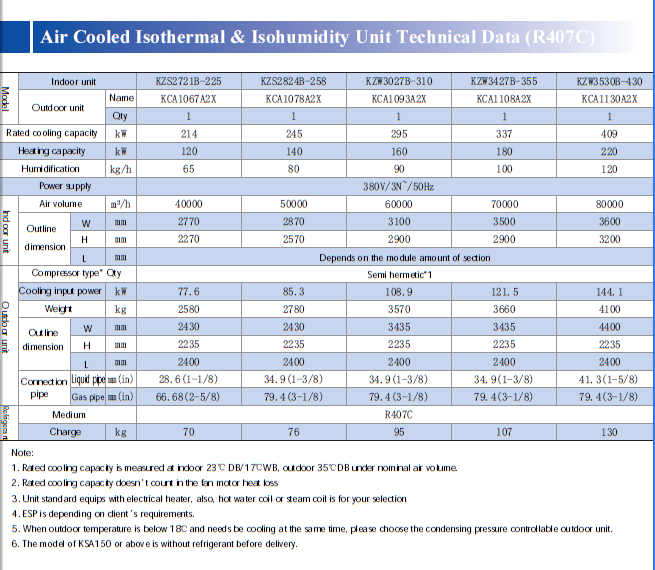

hình 95.png
